Multi Color Turnstile Gate

Multi Color Turnstile Gate



Cost Effective Gate

  • The turnstile is more accurate and reliable for zero point locking and unlocking.
  • Heavy Duty & Maintenance Free
  • Failure self-detect and alarm indication function, facilitating maintenance and application for the users.
  • Multi Function & without limit for operation modes and Access Control Install.
  • Automatic function of opening or closing when power off.
  • Multi-Function of Access Control Terminal installing
  • Anti Pass-Back System, (the system will cancel the people passing right when reading the Access Request but not passing, the time can be set.)

  1. Power Voltage: AC220V/110V±10% 50HZ/60HZ
  2. Operation Temperature: -25°C to +75°C
  3. Relative Humidity: <90%, no condensation
  4. Access Width: ≤530mm
  5. Passing Speed: ≤40 Persons/min. (IC Card)
  6. Motor: 0.5NM/24V (Fully Automatic)
  7. Input Connection: +12V Level Signal or Pulse Wide>10ms DC12V
  8. Material: Stainless Steel 304; Thickness is no less than 1.5mm
  9. Colour: Power Coating Black / Other Colour and Stainless Steel (Optional)
  10. Operation Place: Subway Station, Hoverport, Tourism, Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit,Attendance, Gateway Guard,Charge Management, Special AccessControl, etc.



Access and traffic control has been a major concern of security staff of any organization. Access Control Tripod Turnstile Gate controls traffic and provides facilities for monitoring and controlling traffic and access of personnel and clients; Access Control Tripod Turnstile Gate decreases requirements for human forces.

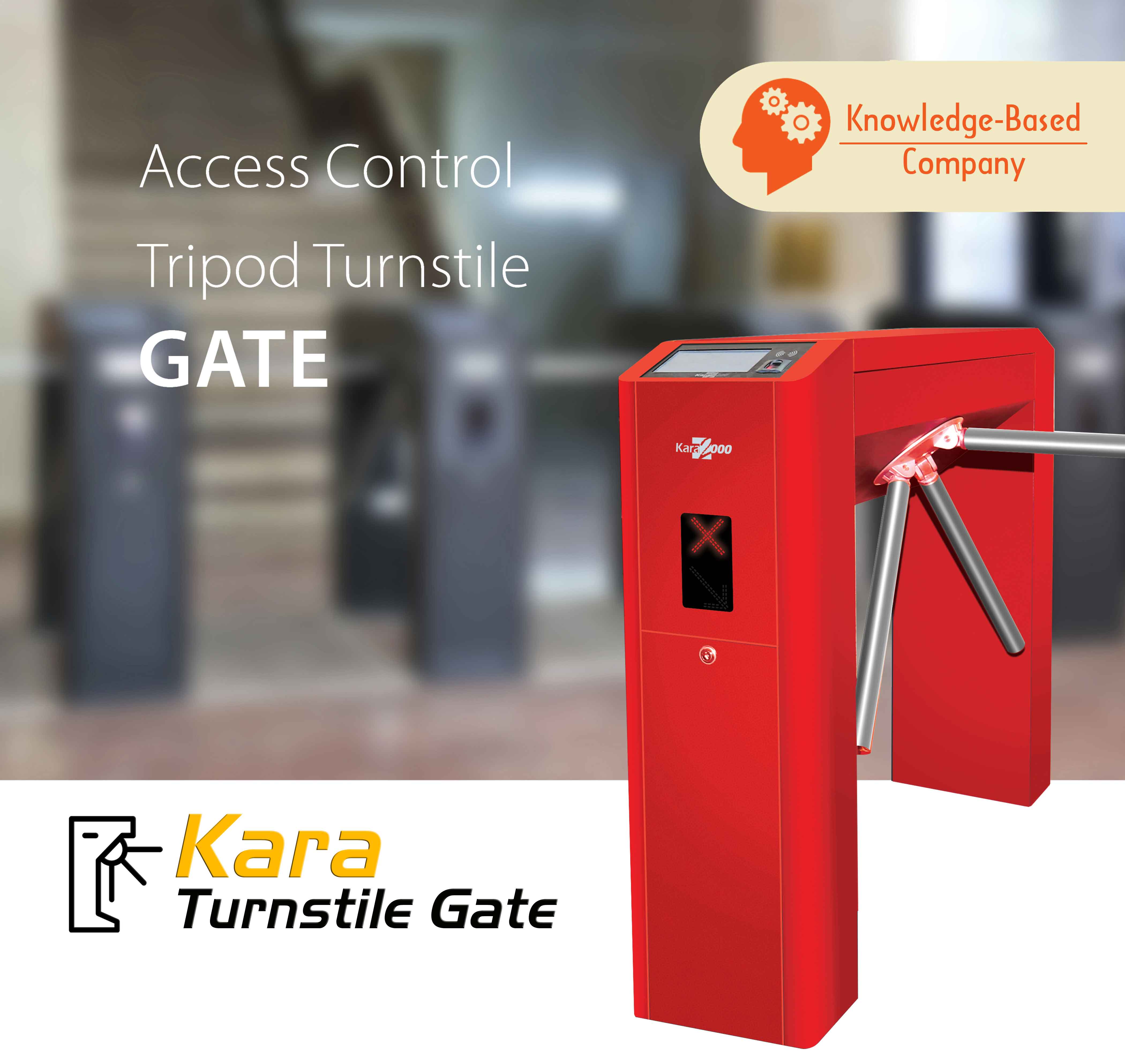

Access Control Tripod Turnstile Gate

Key Features:

  • Capable for being used in public, academic, organizational and sport places
  • Capable for releasing the arm (automatically) during power outages or emergencies
  • Using the remote controls for special traffics, changing direction, or releasing the arm
  • Capable for being used in unilateral or bilateral modes
  • Capable for being equipped to fingerprint controller or camera or card reader
  • Recording traffic and attendance addition to controlling allowed and not allowed traffics
  • Capable of being connected to emergency mode sensor to release the gate in certain situations
  • Being equipped with anti-return system to prevent reverse circulation of levers
  • Detection aimed at preventing traffic from the opposite direction
  • Capable of being connected to software or settings for reporting traffic conditions
